Concrete Waterproofing with Crystalline Technology

Crystalline chemicals improve concrete durability, lower maintenance costs, and extend building life cycles
[ Page 1 of 7 ]  Page 1 Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 next page
Sponsored by XYPEX Chemical Corp.

Learning Objectives:

  1. Understand how crystalline technology works with concrete to provide high performance waterproofing qualities.
  2. Explain the difference between porosity, permeability and the mechanics by which water is absorbed through concrete structures.
  3. Discuss how crystalline waterproofing technology improves the durability of concrete structures and reduces maintenance.
  4. Identify appropriate crystalline technology product applications for various types of concrete construction.
  5. Analyze how crystalline technology admixtures can impact building life cycle and project construction costs.


1 PDH*
AAA 1 Structured Learning Hour
This course can be self-reported to the AANB, as per their CE Guidelines
AAPEI 1 Structured Learning Hour
MAA 1 Structured Learning Hour
This course can be self-reported to the NLAA.
This course can be self-reported to the NSAA
NWTAA 1 Structured Learning Hour
OAA 1 Learning Hour
SAA 1 Hour of Core Learning
This course can be self-reported to the AIBC, as per their CE Guidelines.
As an IACET Accredited Provider, BNP Media offers IACET CEUs for its learning events that comply with the ANSI/IACET Continuing Education and Training Standard.
This course is approved as a Structured Course
This course can be self-reported to the AANB, as per their CE Guidelines
Approved for structured learning
Approved for Core Learning
This course can be self-reported to the NLAA
Course may qualify for Learning Hours with NWTAA
Course eligible for OAA Learning Hours
This course is approved as a core course
This course can be self-reported for Learning Units to the Architectural Institute of British Columbia

From foundations, floor slabs and exterior pre-cast panels, to water treatment facilities and underground urban infrastructure, concrete is one of the most commonly used building and construction materials. However, due to its composition, a mixture of rock, sand, cement, and water, concrete is often susceptible to damage and deterioration from water and chemical penetration.

These deleterious effects can be avoided through the use of crystalline waterproofing technology, which effectively improves the durability and lifespan of concrete structures, thereby reducing long-term maintenance costs. This article explores how crystalline technology provides a high level of performance to concrete mixtures, materials, and structures, and what design professionals need to know in order to specify and understand how this chemical technology will enhance building projects.

The Nature of Concrete

The aggregate base of a concrete mixture is formed by rock and sand. This cement and water mixture creates a paste that binds the aggregates together. As the cement particles hydrate, or combine with water, they form calcium silicate hydrates. The mixture then hardens into a solid, rock-like mass.

Concrete is also a water based product. To make this mixture workable, easy to place, and consolidate, more water than is necessary for the hydration of the cement is used. This extra water, known as the water of convenience, will bleed out of the concrete, leaving behind pores and capillary tracts. Although concrete appears to be a solid material, it is both porous and permeable.

Water reducers and superplasticizers can be used to reduce the amount of water in the concrete mix, and maintain its workability. However, pores, voids, and capillary paths will remain in cured concrete and can carry water and aggressive chemicals into structural elements that will corrode steel reinforcement and deteriorate concrete, thus jeopardizing the structure’s integrity.

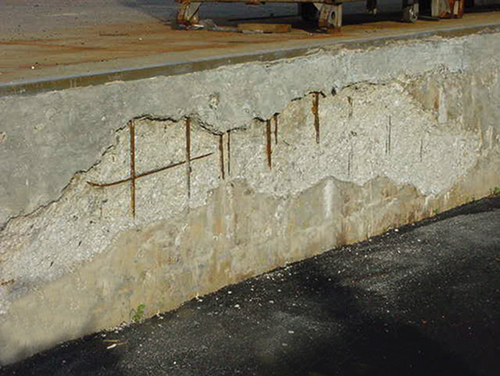

Concrete deterioration due to rusting of reinforcing steel

Photo courtesy of Xypex


[ Page 1 of 7 ]  Page 1 Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 next page
Originally published in November 2011
