Data and Health-Care Design

New-Age Medicine: Architects are marshaling new tools like AI and augmented reality to design the next generation of health-care environments

Sponsored by Architectural Record | By Katharine Logan

View course on architecturalrecord.com »

Photo © Jiri Havran

Glasblokkene Hospital relied on an all-digital design and delivery process.



There’s tremendous buzz and a fair bit of confusion concerning artificial intelligence (AI), but it’s not oversimplifying to say that what AI boils down to is data. Health-care facilities, as one of the most complex building types that architects design, are awash in information, so it’s no surprise that the sector’s design teams are in the vanguard of data-informed design and construction.

“AI is nothing but how data is changing the way we look at our design solutions,” says Sumandeep Singh, health studio-practice leader in the Singapore office of HKS Architects. Singh’s team is developing a generative-AI tool for using the firm’s decades of data to help optimize the programming of new health-care facilities. The initiative aims to bridge a gap between the data that the firm and its clients have accumulated—including meeting notes, room templates, spreadsheets containing room-type ratios, and more—and the issues that the information could help solve. Examples might include right-sizing inpatient facilities for declining length of stays, making adequate spatial provisions for the coming wave of automation and robotics, optimizing adjacencies for operational efficiency, or incorporating post-occupancy insights into, say, how design can help prevent medical errors or patient falls. The interactive platform will facilitate new inputs (including site factors such as height restrictions), translate the data into visual formats for communication, and even connect to design software such as Grasshopper to suggest options for building massing. It is one example of how health-care architects are harnessing data to expand the scope and value of their services.

Further examples of data-informed health-care projects include Phase 2 of Glasblokkene Haukeland Hospital for Children and Women, designed by KHR Architecture, PKA ­Arki­tekter, Henning Larsen Norway, and Schönherr (Arkitektgruppen BUSP) and completed in 2023 in Bergen, Norway. The project is one of the world’s first health-care facilities to pioneer an all-digital design and delivery process. UCI Health – Irvine, delivered by a design-build partnership of CO Architects and Hensel Phelps, and expected to complete this fall in Irvine, California, used AI- and augmented-reality-integrated simulations to develop and test design innovations. And the iKure Health Hub, by HDR, now preparing to begin construction in rural India, used machine learning and generative AI to guide schematic design, helping to make the most of limited resources.

Glasblokkene’s 538,000-square-foot second phase consists, like its first phase, of a series of four narrow glass blocks designed to break down the scale of the development while optimizing daylight and views to healing gardens, greenery, and distant hills. Shoe-horned into a tight urban site, with a fully operational hospital next door and houses on the other side, the project used digital-twin technology initially to help minimize the risks and unforeseen costs of building under these constraints, and then to support the facility’s operations and maintenance, extending the value of the digital investment over the project’s life cycle. (A digital twin is a virtual representation of a physical object.) “Health-care buildings, by their nature, are especially well suited to digital-twin technology,”
says Caroline Tjernås, project architect at Copenhagen-based KHR. “They involve a high degree of technical integration, vast amounts of critical data, and operational environments where reliability and downtime are crucial factors.”

Photo © Jiri Havran

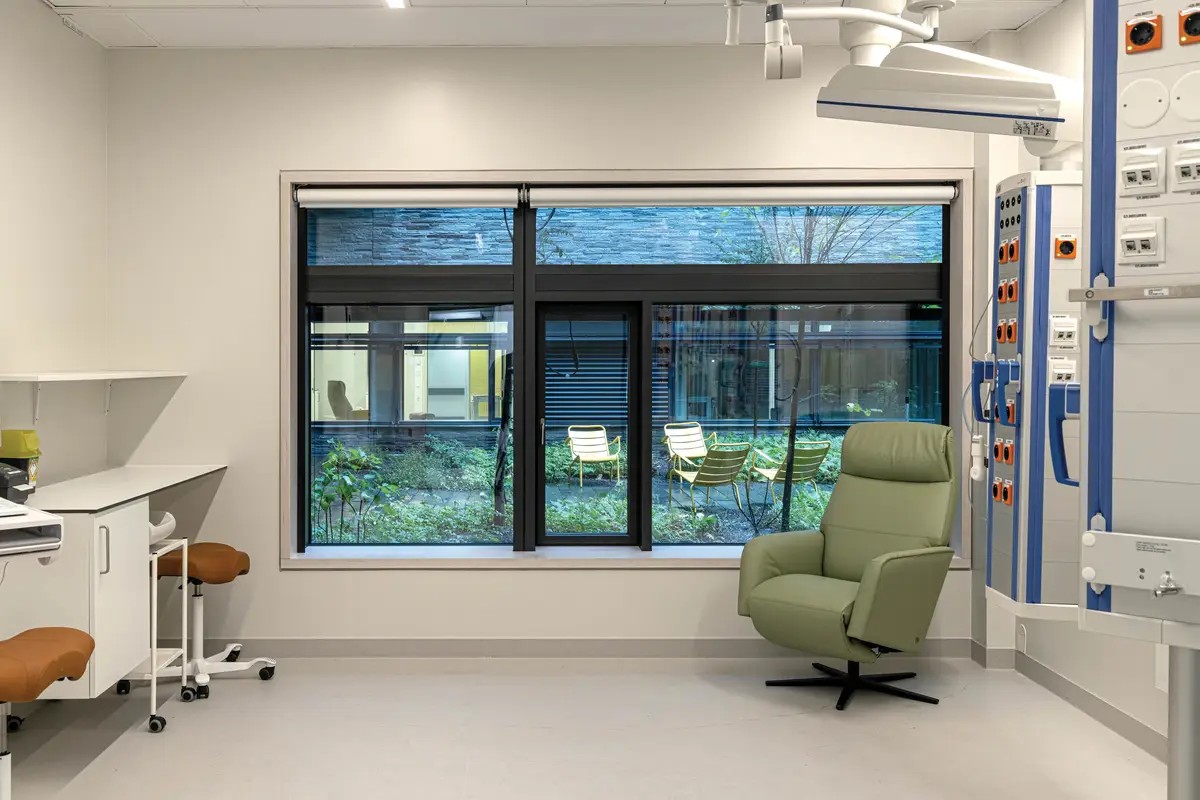

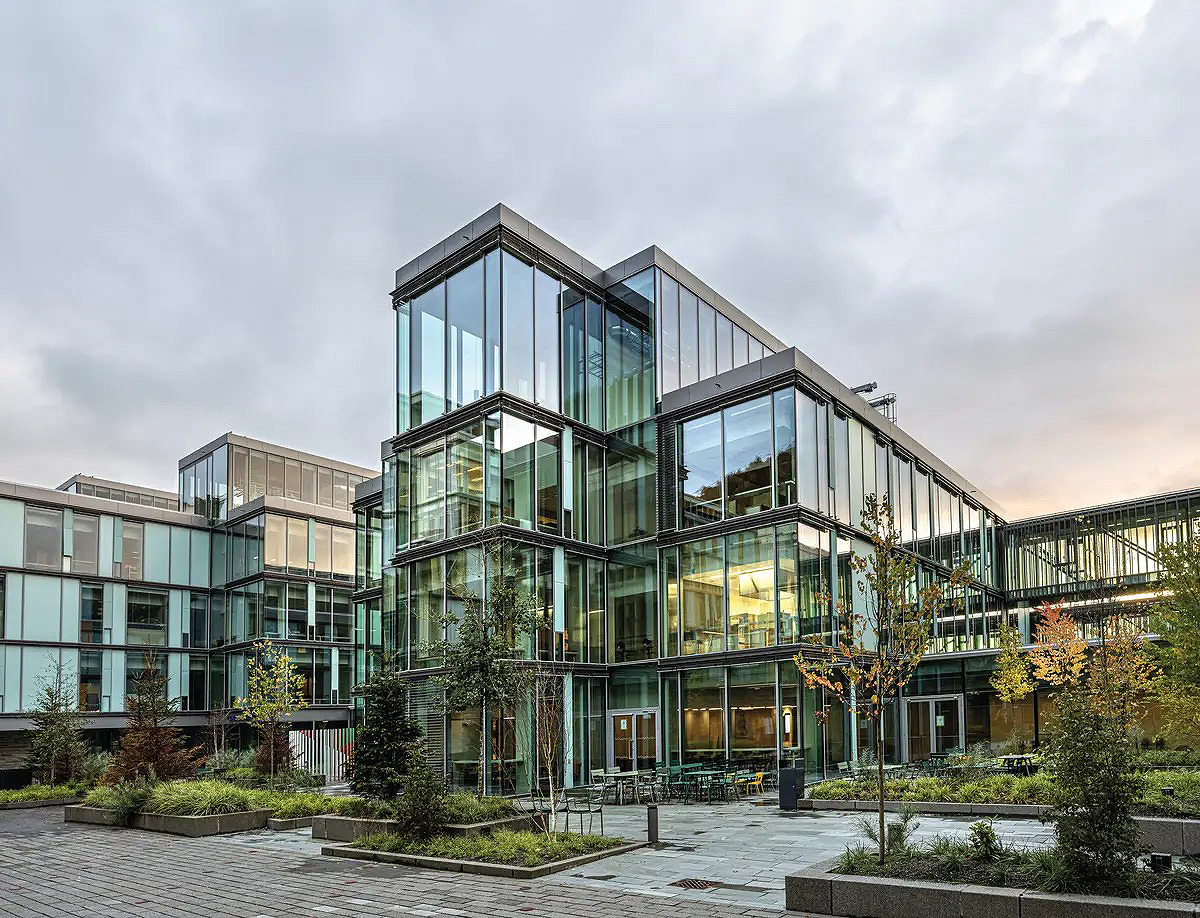

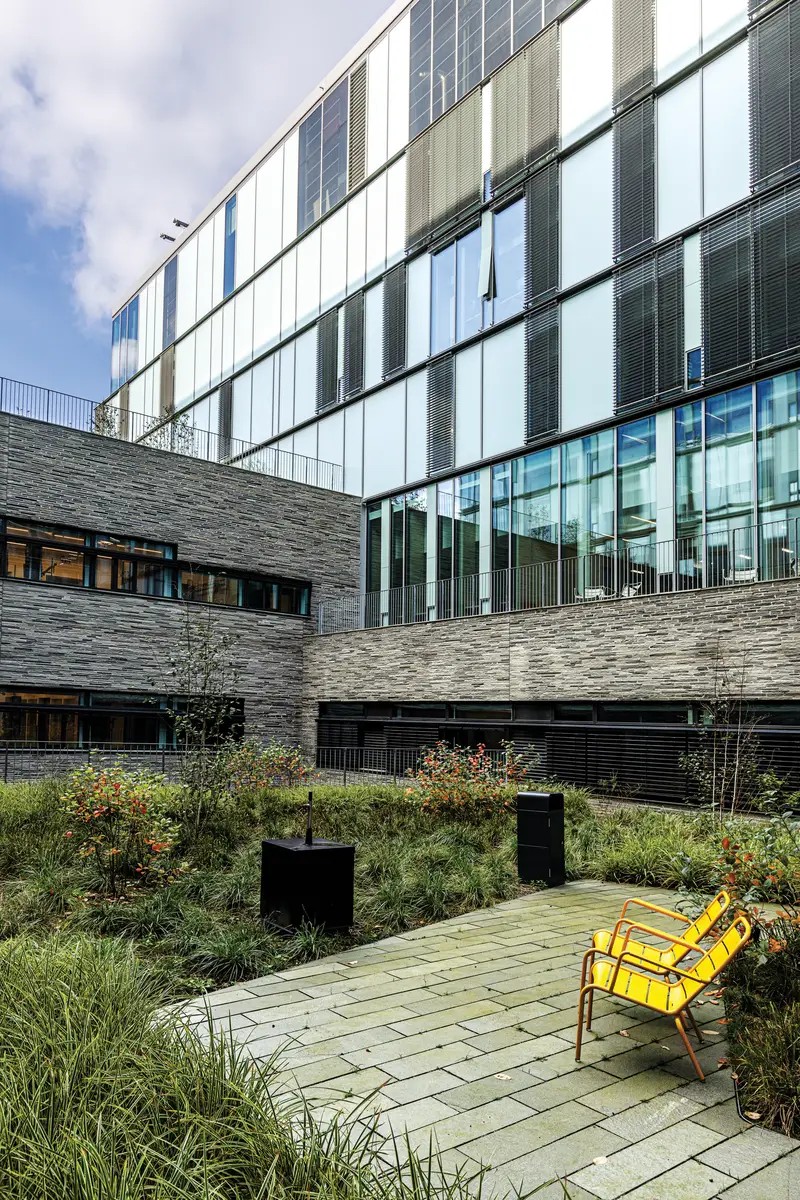

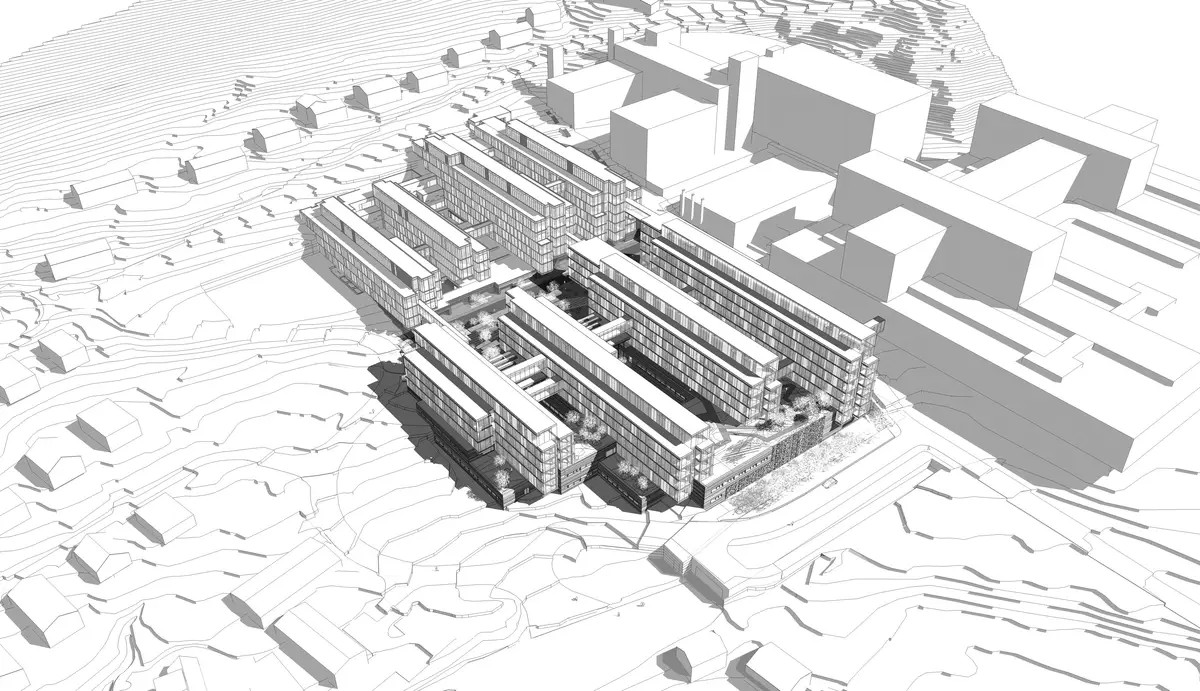

Organized to optimize daylight and views of nature, the team behind Glasblokkene (above & below) used digital-twin technology to build under the constraints of its tight site.



Photo © Jiri Havran



Photo © Jiri Havran



Image courtesy KHR Architecture



During Glasblokkene’s design and construction, the model provided a centralized repository of building information. It enhanced coordination and transparency among stakeholders, helped to eliminate conflicts within the design, and made possible a virtual dry run of the construction process. Anyone on the project team could (and facility management staff still can) click on a component—whether a wall assembly, a ventilation unit, a lighting fixture, or a clothes hook—to check on its status and access its associated data sheets. But the digital twin isn’t “one product that solves everything,” Tjernås says. The project team relied on a suite of (more or less) complementary tools, including databases, collaborative software, and virtual reality (VR) platforms, all brought together to enable the team to manage data, coordinate tasks, and visualize the project collectively and in real time.

Even working on a constrained site, during Covid, using previously untried processes, the project was delivered on time and on budget. “Having all that digital information, open to all the participants, was crucial.” Tjernås says. “Otherwise, we wouldn’t have made it.”

The fully digital undertaking wasn’t without its challenges, however. One of the most significant pertained to the sheer amount of information contained in the digital twin and the shift away from drawing sets tailored to each component or system. “What happens when we send everything, every little piece of information we have”—which is what the digital twin represents—“and tell a contractor, ‘you’ve got to find what you need in this’?” Tjernås asks. Contractors taking their own measurements without a shared reference point, for example, could easily allow construction tolerances to accumulate into significant errors—and that’s after they’ve managed to disregard a lot of unrelated info­rm­ation in order to identify their scope of work. Another challenge came from the technology’s effect on project priorities. “You are very focused on getting everything in the model correct, sharing the model, putting all the information into all your different objects, saying, ‘This is ready to develop. Check, check, check.’ ” But what is missing is a check box for good design. “That was something we had to remind ourselves of.” Challenges notwithstanding, the result, Tjernås says, is “a really good hospital, where staff is happy, the client is happy, and they’ve had an easy handover to their maintenance team.”

The handover to operations is a key piece of the digital twin’s utility. All too often on complex projects, building information ends up hidden on a server somewhere, forgotten. For Glasblokkene, having a comprehensive and dynamic model, with staff trained to access it, is where the long-term value of the digital investment lies. “Building a hospital is expensive,” Tjernås says, “but it’s nothing compared to running it.”

View course on architecturalrecord.com »

Photo © Jiri Havran

Glasblokkene Hospital relied on an all-digital design and delivery process.



There’s tremendous buzz and a fair bit of confusion concerning artificial intelligence (AI), but it’s not oversimplifying to say that what AI boils down to is data. Health-care facilities, as one of the most complex building types that architects design, are awash in information, so it’s no surprise that the sector’s design teams are in the vanguard of data-informed design and construction.

“AI is nothing but how data is changing the way we look at our design solutions,” says Sumandeep Singh, health studio-practice leader in the Singapore office of HKS Architects. Singh’s team is developing a generative-AI tool for using the firm’s decades of data to help optimize the programming of new health-care facilities. The initiative aims to bridge a gap between the data that the firm and its clients have accumulated—including meeting notes, room templates, spreadsheets containing room-type ratios, and more—and the issues that the information could help solve. Examples might include right-sizing inpatient facilities for declining length of stays, making adequate spatial provisions for the coming wave of automation and robotics, optimizing adjacencies for operational efficiency, or incorporating post-occupancy insights into, say, how design can help prevent medical errors or patient falls. The interactive platform will facilitate new inputs (including site factors such as height restrictions), translate the data into visual formats for communication, and even connect to design software such as Grasshopper to suggest options for building massing. It is one example of how health-care architects are harnessing data to expand the scope and value of their services.

Further examples of data-informed health-care projects include Phase 2 of Glasblokkene Haukeland Hospital for Children and Women, designed by KHR Architecture, PKA ­Arki­tekter, Henning Larsen Norway, and Schönherr (Arkitektgruppen BUSP) and completed in 2023 in Bergen, Norway. The project is one of the world’s first health-care facilities to pioneer an all-digital design and delivery process. UCI Health – Irvine, delivered by a design-build partnership of CO Architects and Hensel Phelps, and expected to complete this fall in Irvine, California, used AI- and augmented-reality-integrated simulations to develop and test design innovations. And the iKure Health Hub, by HDR, now preparing to begin construction in rural India, used machine learning and generative AI to guide schematic design, helping to make the most of limited resources.

Glasblokkene’s 538,000-square-foot second phase consists, like its first phase, of a series of four narrow glass blocks designed to break down the scale of the development while optimizing daylight and views to healing gardens, greenery, and distant hills. Shoe-horned into a tight urban site, with a fully operational hospital next door and houses on the other side, the project used digital-twin technology initially to help minimize the risks and unforeseen costs of building under these constraints, and then to support the facility’s operations and maintenance, extending the value of the digital investment over the project’s life cycle. (A digital twin is a virtual representation of a physical object.) “Health-care buildings, by their nature, are especially well suited to digital-twin technology,”
says Caroline Tjernås, project architect at Copenhagen-based KHR. “They involve a high degree of technical integration, vast amounts of critical data, and operational environments where reliability and downtime are crucial factors.”

Photo © Jiri Havran

Organized to optimize daylight and views of nature, the team behind Glasblokkene (above & below) used digital-twin technology to build under the constraints of its tight site.



Photo © Jiri Havran



Photo © Jiri Havran



Image courtesy KHR Architecture



During Glasblokkene’s design and construction, the model provided a centralized repository of building information. It enhanced coordination and transparency among stakeholders, helped to eliminate conflicts within the design, and made possible a virtual dry run of the construction process. Anyone on the project team could (and facility management staff still can) click on a component—whether a wall assembly, a ventilation unit, a lighting fixture, or a clothes hook—to check on its status and access its associated data sheets. But the digital twin isn’t “one product that solves everything,” Tjernås says. The project team relied on a suite of (more or less) complementary tools, including databases, collaborative software, and virtual reality (VR) platforms, all brought together to enable the team to manage data, coordinate tasks, and visualize the project collectively and in real time.

Even working on a constrained site, during Covid, using previously untried processes, the project was delivered on time and on budget. “Having all that digital information, open to all the participants, was crucial.” Tjernås says. “Otherwise, we wouldn’t have made it.”

The fully digital undertaking wasn’t without its challenges, however. One of the most significant pertained to the sheer amount of information contained in the digital twin and the shift away from drawing sets tailored to each component or system. “What happens when we send everything, every little piece of information we have”—which is what the digital twin represents—“and tell a contractor, ‘you’ve got to find what you need in this’?” Tjernås asks. Contractors taking their own measurements without a shared reference point, for example, could easily allow construction tolerances to accumulate into significant errors—and that’s after they’ve managed to disregard a lot of unrelated info­rm­ation in order to identify their scope of work. Another challenge came from the technology’s effect on project priorities. “You are very focused on getting everything in the model correct, sharing the model, putting all the information into all your different objects, saying, ‘This is ready to develop. Check, check, check.’ ” But what is missing is a check box for good design. “That was something we had to remind ourselves of.” Challenges notwithstanding, the result, Tjernås says, is “a really good hospital, where staff is happy, the client is happy, and they’ve had an easy handover to their maintenance team.”

The handover to operations is a key piece of the digital twin’s utility. All too often on complex projects, building information ends up hidden on a server somewhere, forgotten. For Glasblokkene, having a comprehensive and dynamic model, with staff trained to access it, is where the long-term value of the digital investment lies. “Building a hospital is expensive,” Tjernås says, “but it’s nothing compared to running it.”

Where data-rich digital tools facilitated Glasblokkene’s design development and later phases, computational design contributed much earlier in the process for the UCI Health project. The 580,000-square-foot facility, which includes a 357,000-square-foot hospital and a 223,000-square-foot ambulatory care and cancer center (as well as a parking structure and central utility plant), is innovative in a number of aspects. It is expected to be the first all-electric health-care facility in the country. It pioneers a universal room type, permitted as intensive care, for which the client can change the licensure to meet evolving needs. And it integrates both inpatient and outpatient procedures on a 164,000-square-foot surgical mega-floor, with over 20 operating and procedure rooms, all functioning as a single system.

Image courtesy CO Architects

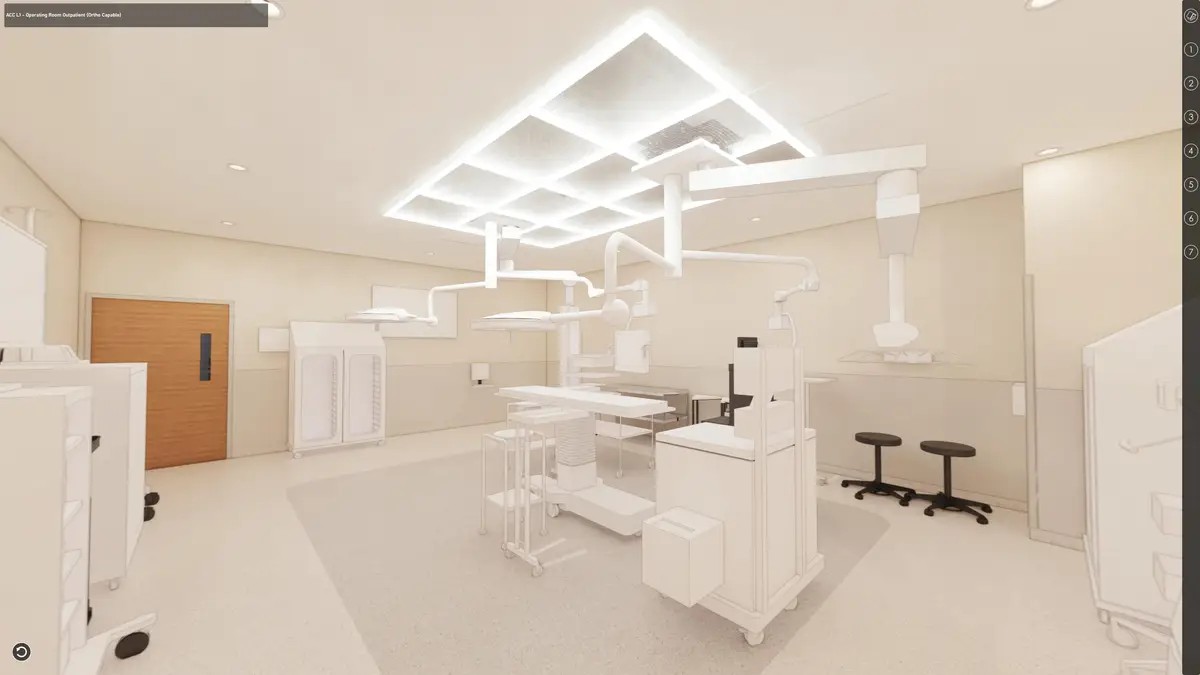

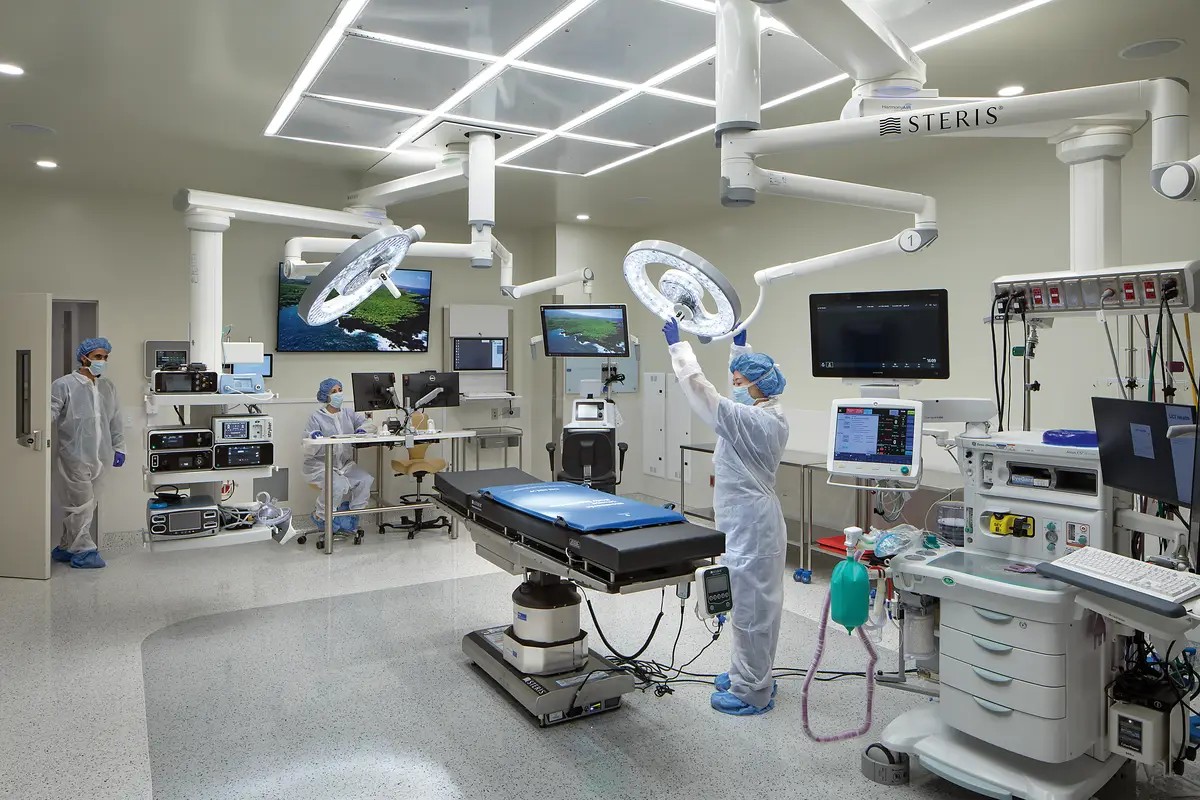

For its UCI Health project (above), CO Architects developed the OR layout (below) with the aid of AR (below) and used a gaming engine to simulate patient flows.



Photo © Tom Bonner



Image courtesy CO Architects



Image courtesy CO Architects



“When you’re the first to do something, how do you know that you’re getting it right?” asks Gina Chang, a principal at Los Angeles–based CO Architects. Central to the team’s confidence in these innovations, especially for the surgical floor, was the extensive use of augmented reality (AR)- and AI-integrated mock-ups to test them. In one type of simulation, the architect used AR to superimpose medical equipment—lights, booms, gurney, and the rest—onto a mock-up of a bare operating room. Representatives for each type of surgical procedure could then don goggles and try out the setup, interacting with the virtual equipment and, in multiuser scenarios, with one another, in the physical space.

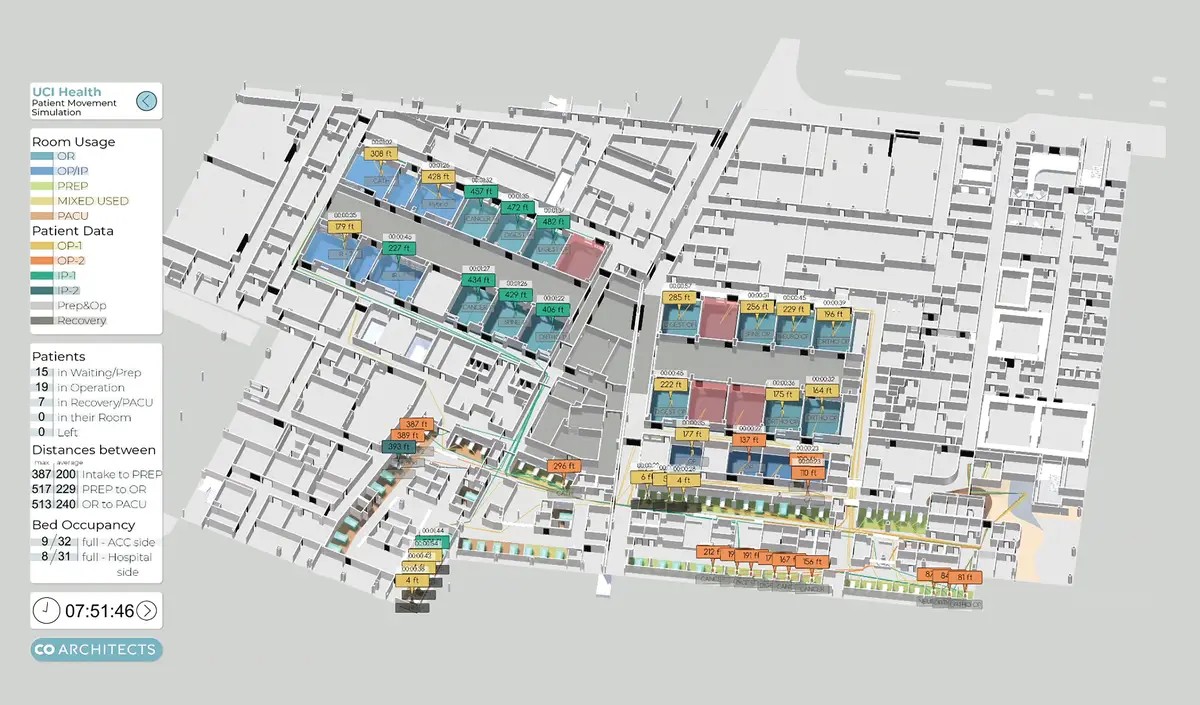

Another type of simulation, built by CO in-house using a gaming engine, modeled the surgical floor’s complex workflows. Incorpo­rating client data, such as case volumes and staffing schedules, and drawing on the architect’s accumulated health-care-design expertise, CO coded the AI agents in the engine—pretrained with basic behaviors, such as not walking through walls—to simulate hospital workers moving through a full day of operational scenarios. “In a health-care environment, there’s a whole range of asynchronous behaviors,” says Chikara Inamura, director of digital technology at CO, referring to such activities as patient transport, surgical preparation, team communication, and maintaining a sterile environment. “Through simulations, we have an ability to understand emergent collective behavior, to facilitate collaborations, and to understand the stress points of each design decision.”
